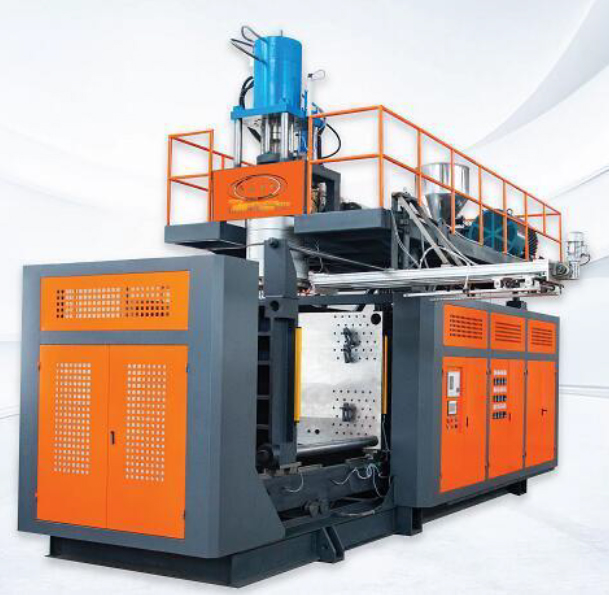

YF-80 Automatic Blow Molding Machine and Production Process

Categories: ,

Description

Model YF-80

Materials: PE, PP….

Capacity: depends on the bottle shape, 370pcs/h

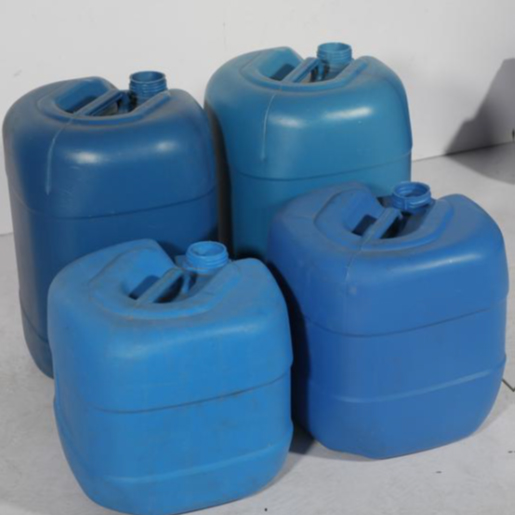

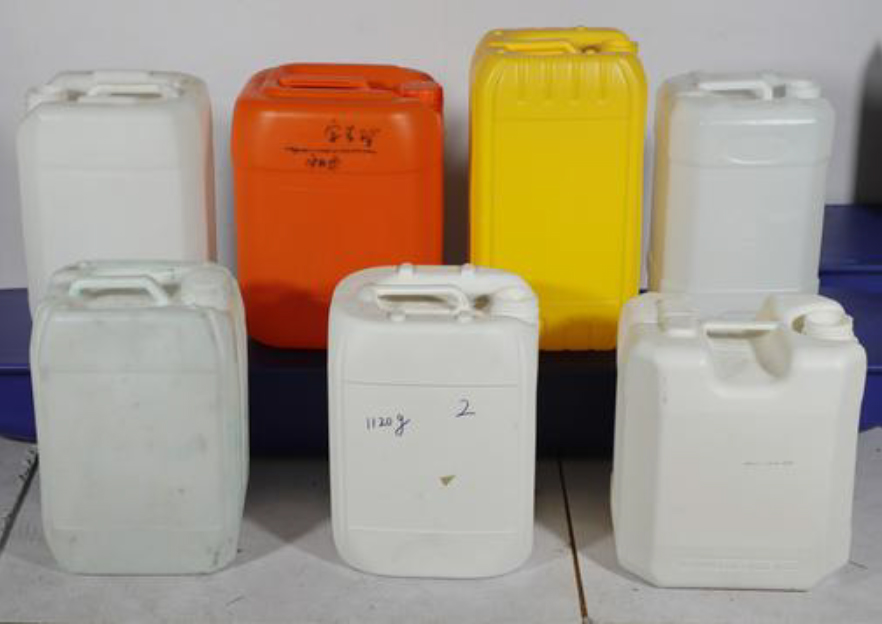

Product Capacity: 1 cavity, 10L~30L

Qty: piece, 1

Station: piece, 1

Extrustion System:

Screw Diameter, 80mm

Screw Diameter: 25:1 L/D

Screw Aspect Ratio: 80 r/min

Plasticizing Capacity: 100kg/h

Number Heating Sections of Screw: 6

Mould Head:

Storage Cylinder Volume: 4.8L
Max Diameter of extrustion outlet: 300mm

Number Heated Sections of Head: 4段

Mould:

Cavity Number: 1腔

Template Spacing: 350~1200mm

Clamping Force: 220KN

Power:

Voltage, 220/380V, 3phase 50/60Hz

Heating Power, 20Kw

Oil Pump Power, 15 Kw

Screw Motor Power: 22Kw

Water: Cooling Tower

Air Pressure: 0.6~0.8 MPa
